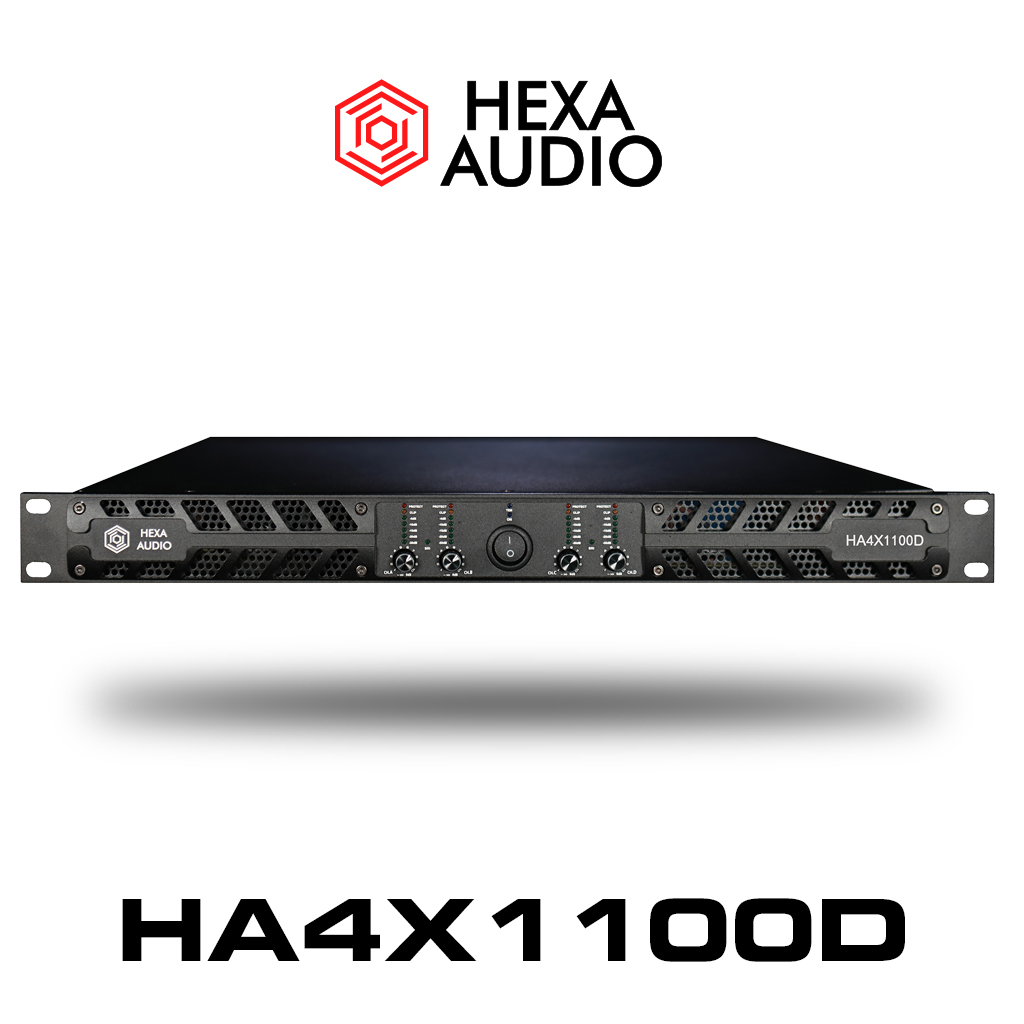

HA4X1100D

Description

Output power stéréo : Bridge Mode :
(RMS) (RMS)
4x1100w @ 8 ohms 2x2200w @ 16 ohms
4x1830w @ 4 ohms 2x3660w @ 8 ohms
4x2700w @ 2 ohms 2x5000w @ 4 ohms

Fequency response : 10Hz – 20 KHz / (±)0,35dB

THD + N : ≤ 0,5% @ 8Ω 1kHz
(20Hz – 20KHz)

S/N Rate : > 99 dB
(20Hz – 20KHz)

Crosstalk : > 70 dB
(1KHz)

Slew Rate : > 30w/µs

Damping Factor : > 3000 (8ohms) 20 Hz to 100Hz

Voltage GAIN : 41,7 dB (0.775v : 94v)

Input Sensitivity : 0.775v ,1v ,1.4v, 2v

Input Impendance : 10K Ω balance/20K Ω unbalance

Input connectors : XLR Active balance
pin1 gnd/ pin2+ /pin3-

Output connectors : 4 Neutrik NL4 Sockets

Protection : Short circuit , DC, overload,
ultrasonic, RF, voltage peak limit it

Operating Voltage : 110V/220V available

Fuse : F-25A

Power consumption : <130w (Idle) Power consumption : <4000w (Max) Circuit : Class D
